VZBC-25-FF-40-22-F0405-V4V4T-PP30-R-90-C Pneumatic Actuated Valve - 1913368
Order Code: ZT5381327S
£749.99 Inc VAT (20%)
Description

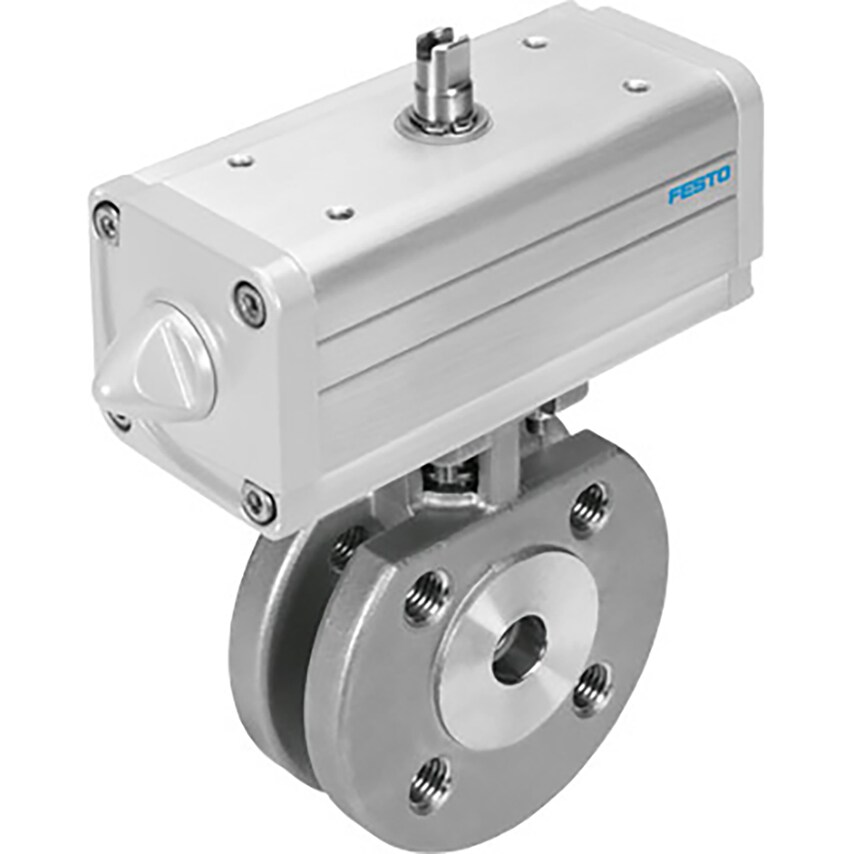

Ball Valve Actuator Unit Vzbc-25-Ff-40-22-F0405-V4V4T-Pp30-R-90-C Stainless Steel with Double-Acting Actuator Daps 2/2-Way, Nominal Width Dn25, Pn40, Din 1092-1. Design Structure= (* 2-Way Ball Valve, * Swivel Drive) , Type of Actuation=Pneumatic, Assembly Position=Any, Mounting Type=Line Installation, Process Valve Connection=Ring Housing with Screw Connection, Festo
Specifications for VZBC-25-FF-40-22-F0405-V4V4T-PP30-R-90-C Pneumatic Actuated Valve - 1913368
- MaterialStainless Steel
- Product TypePneumatic Actuated Valves
- Working Pressure6 to 8.4 bar
- Seal MaterialPTFE/PTFE- Reinforced
- Flow Rate78650lpm
- Function2 Way
- Nominal Bore25mm
- Temperature Range10°C to +200°C
