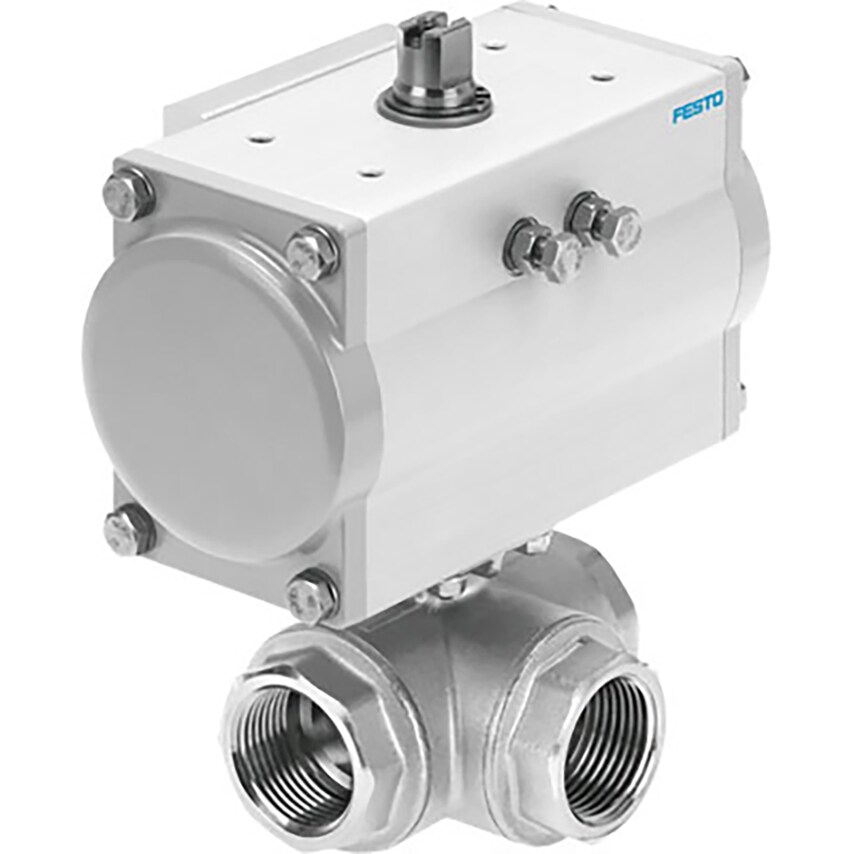

VZBM-A-1/4in-RP-25-F-3L-B2-PA10 - 8070250 Pneumatic Actuated Valves
Order Code: ZT5403201S
£249.99 Inc VAT (20%)
Description
Ball Valve Actuator Unit Vzbm-A-1/4"-Rp-25-F-3L-B2-Pa10 Brass, with Double-Acting Actuator Dfpd 3/2-Way, Nominal Width 1/4", Pn25, Thread En 10226-1. Design Structure= (* 3-Way Ball Valve, * Swivel Drive) , Type of Actuation=Pneumatic, Assembly Position=Any, Mounting Type=Line Installation, Process Valve Connection=Rp1/4, Festo
Specifications for VZBM-A-1/4in-RP-25-F-3L-B2-PA10 - 8070250 Pneumatic Actuated Valves
- MaterialBrass
- Thread TypeBSPP
- Product TypePneumatic Actuated Valves
- Thread GenderFemale
- Temperature Range20°C to +130°C
- Function3/2 Way
- Seal MaterialHNitrile/PTFE
- Working Pressure5.5 to 8 bar
- Flow Rate6490lpm
- Nominal Bore8mm
